LASER WIRE STRIPPER

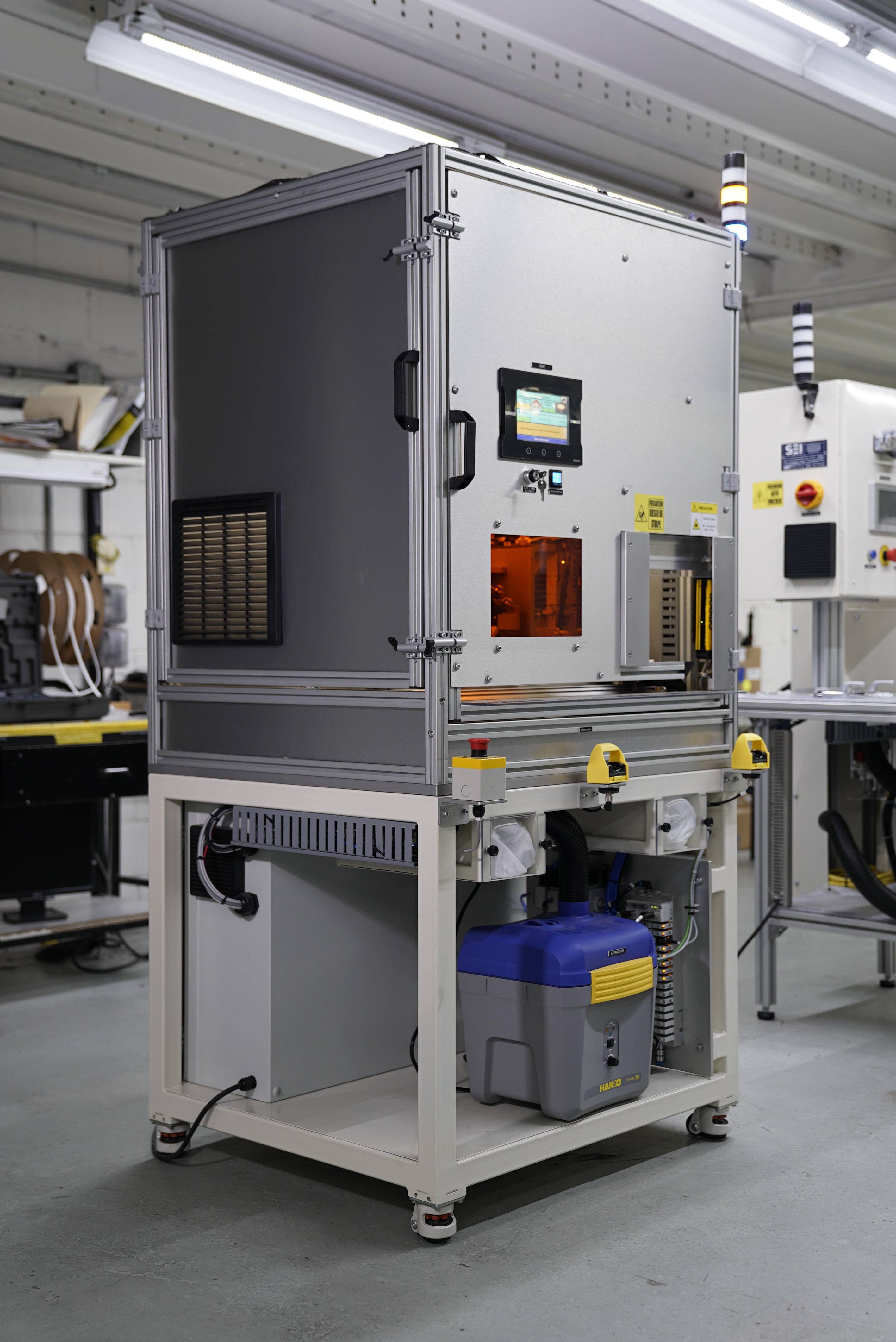

LASER WIRE STRIPPER

The design of the laser cutting and stripping equipment was developed to have a high quality, precision and cleanliness of the stripping of cables, without damaging the conductor wire.

The machine has a laser system for cutting the insulation, a laser beam on the top and bottom cuts the insulation around the conductor wire, a knife system for cutting the cables to the desired length and the mechanical stripping system to pull the insulation from the wire.

The cable loading to the fixture is done manually by the machine operator.

Wire tinning option is also available, plus other machine customizations. Our goal is to meet customer requirements!!

Laser Wire Stripper Options

  • Laser cutting and stripping.
  • Laser cutting and stripping / double parts per cycle.
  • Laser cutting and stripping / with tinning system.
  • Laser cutting and stripping / with tinning system /
    with automatic Soldering system (developed according to product).

Optional

Vision system

  • Color identification of cable
  • Models programming

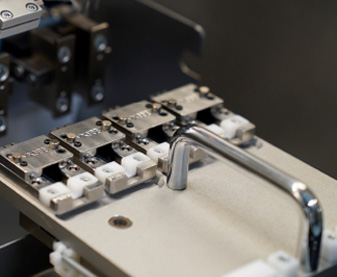

FIXTURE

The loading fixture will be customized according to the type of cables or customer process.

We have experience in different cable diameters and different coatings materials.

Gage / Diameter

  • 25 (Ø0.5mm)
  • 18 (Ø1mm)
  • 16 (Ø1.5mm)
  • 15 (Ø1.25mm)

You may contact us for evaluation.

Materials

  • PP
  • HD-PE
  • SR-PVC
  • PUR

You may contact us for evaluation.

1. Load
2. Cable Length Cut
3. Laser Cut
4. Stripping

Control

  • PLC – Brand Omron
  • Other brands of PLC can be integrated if required.

Systems

  • Fume extractor
  • Cleaning system

Structure

  • Base structure made of tubular steel with powder paint, Color required by the customer.
  • Safety guard made of extruded aluminum with alucobond covers.
  • Front door, left side and rear.
  • Leveling feet and wheels for easy movement.

Interface

  • HMI Brand Omron.
  • Other brands of HMI can be integrated if required.
  • Touch screen display with status messaging.
  • LED indicator beacon with alarm.
  • Start opto switch.

Safety

  • Safety curtains.
  • Doors with controlled access.
  • Emergency stop.
